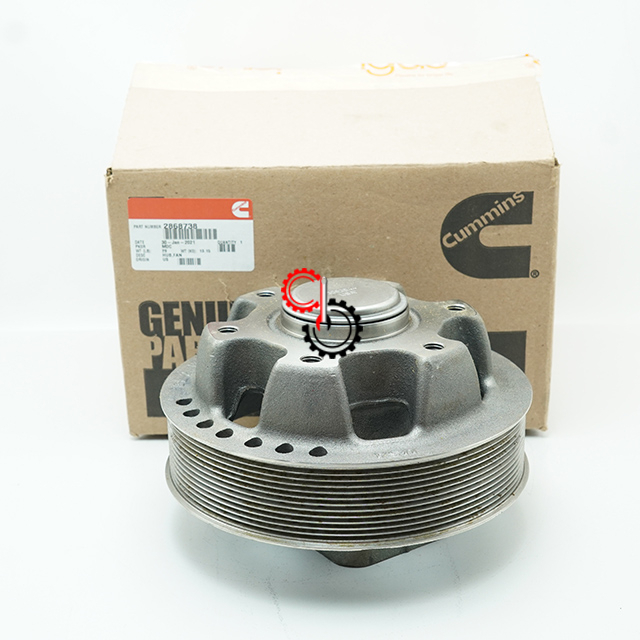

2868733 2868738 Cummins Fan Hub ISX15 QSX15 Diesel Engine Part

Name: 2868733 2868738 Cummins Fan Hub ISX15 QSX15 Diesel Engine Part
Brand: Cummins
SKU: 728777318
Rating: 5.0 (38 reviews)

Supersession Part Number:	2868733 2868738
weight(kg):	13.5
Size:	30cm28cm20cm
Availability:

Quantity:



Inquire Add to Basket PDF Export

Electronic Parts Catalog - Option Detail
Engines	ISX CM570, ISX CM870, ISX CM871, ISX CM871 E, ISX15 CM2250, ISX15 CM2250 SN, ISX15 CM2350 X101, ISX15 CM2350 X129, ISZ13 CM2150 SN, QSX11.9 CM2250 ECF, QSX15 CM2250, QSX15 CM2250 ECF, QSX15 CM2250 X115, QSX15 CM2350 X105, QSX15 CM2350 X106, QSX15 CM2350 X118, QSX15 CM2350 X130, QSX15 CM2350 X131, QSX15 CM570, QSZ13 CM2150 Z101, QSZ13 CM2150 Z102, R2.8 CM2220 R101B, X12 CM2350 X119B, X15 CM2350 X114B, X15 CM2350 X116B, X15 CM2350 X125M, X15 CM2350 X132C

2868738

Cart	Ref No	Part Number	Part Description
		FA1533-07	Fan Drive
	3104448	Tensioner Support	1
1	69753	Pin Dowel	1
	3104421	Belt Tensioner Support	1
4	3093939	Hexagon Flange Head Cap Screw	4
5	3691282	Belt Tensioner	1
6	3681129	Belt Tensioner Support	1
7	3681130	Fan Bracket	1
9	3104420	V Ribbed Belt	1
12	3903112	Hexagon Flange Head Cap Screw	12
13	3896408	Hexagon Flange Head Cap Screw	1
	2868738	Fan Hub	1
15	142176	Lock Nut	1
16	200307	Oil Seal	1
17	2868733	Fan Pulley	1
18	3012467	Plain Washer	1
19	3063844	Fan Hub Cover	1
20	3081164	Roller Bearing	1
21	3681705	Fan Spindle	1
22	3093940	Hexagon Flange Head Cap Screw	5
