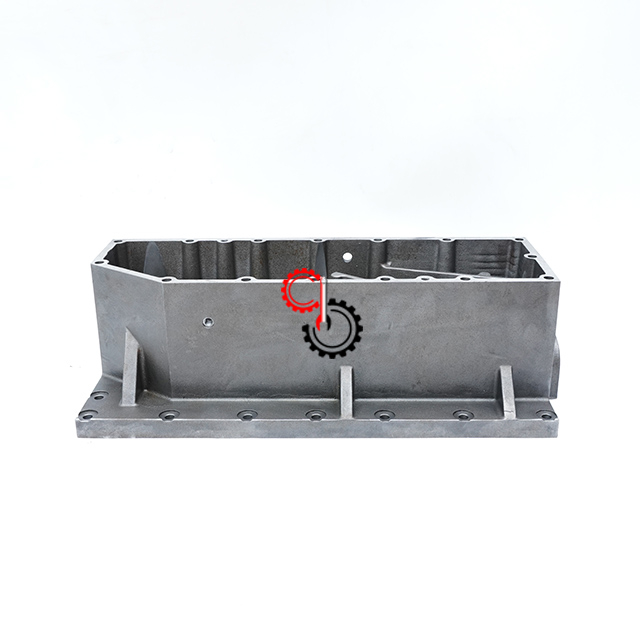

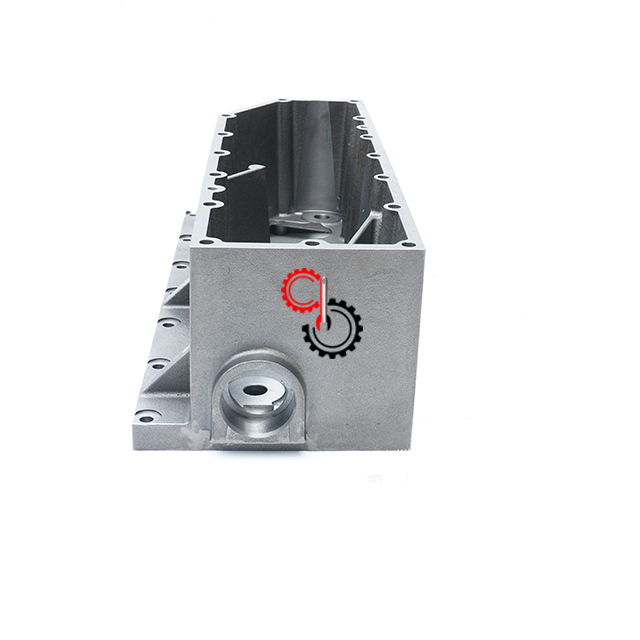

Original Construction Machinery Parts Cummins TOR CNV Cooler Housing 3090449

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • K19

  • Cummins

  • 309044

Supersession Part Number:
3090449
3042370
3001176
Size:
77cm*26cm*18cm
weigt:
48.31kg
Availability:
Quantity:
Inquire Add to Basket

PDF Export
Electronic   Parts Catalog - Option details
motor K19, KTA19   G CMEICS K123, KTA19GC, KTA19GC CM558, QSK19 CM2150   MCRS, QSK19 CM2350 K105, QSK19 CM500, QSK19 CM850   MCRS, QSK19G

3090449

Cart Ref No Part Number Part   Description


LC4717 Engine   oil cooler
1 S   602 Plain   Washer 2
2 S   604 Lock   Washer 19
3 3329535 Studded   Flange Cap Screw 4
4 212161 O-Ring   Seal 8
5 3002126 Lock   Nut 4
6 3012474 Captive   Washer Cap Screw 2
7 3042889 Captive   Washer Cap Screw 1
8 3042890 Captive   Washer Cap Screw 3
9 3062410 Hexagon   Head Cap Screw 7
10 3065790 Lubricating   Oil Cooler Housing Gasket 1
11 205275 Twelve   Point Cap Screw 4
12 3349777 Flange 2
13 3349778 Reducing   Adapter 2
14 127362 Plain   Washer 19
15 S   923 E Draincock 1
16 S   962 E Draincock 1
17 206973 Oil   Cooler Core Gasket 4
18 3033038 Captive   Washer Cap Screw 2
19 3013222 Hexagon   Head Cap Screw 8

3202101 Threaded   Plug 2
20 3046943 O-Ring   Seal 1
21 3050897 Threaded   Plug 1
22 3042372 Torque   Converter Oil Cooler Cover 1
23 3040838 Captive   Washer Cap Screw 10
24 3065791 Torque   Converter Cooler Gasket 1
25 3065792 Torque   Converter Cooler Gasket 1
26 3329531 Oil   Cooler Housing 1
27 3635074 Cooler   Core 2
28 3090449 Torque   Converter Cooler Housing 1

3037536 Threaded   Plug 1
29 3037537 O-Ring   Seal 1
30 3040813 Threaded   Plug 1

3804934 Oil   Cooler Kit 2
31 3078053 Captive   Washer Cap Screw 8
32 4095096 Cooler   Core 1


Previous:
Next:
309044 tor cny cooler housing torque converter cooler housing cummins tor cny cooler housing cummins engine parts
